The tensile machine can use different fixtures to perform force experiments on different materials.
Application

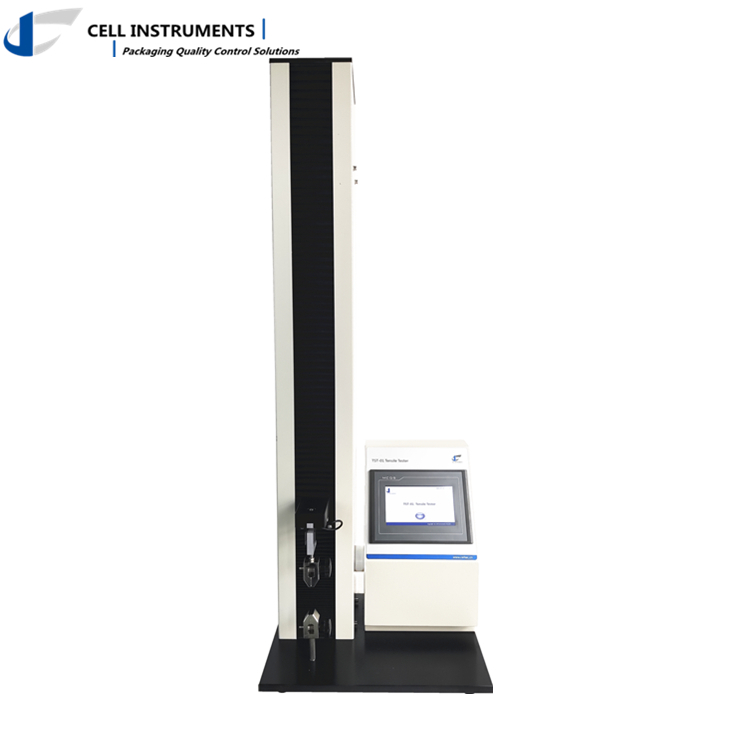

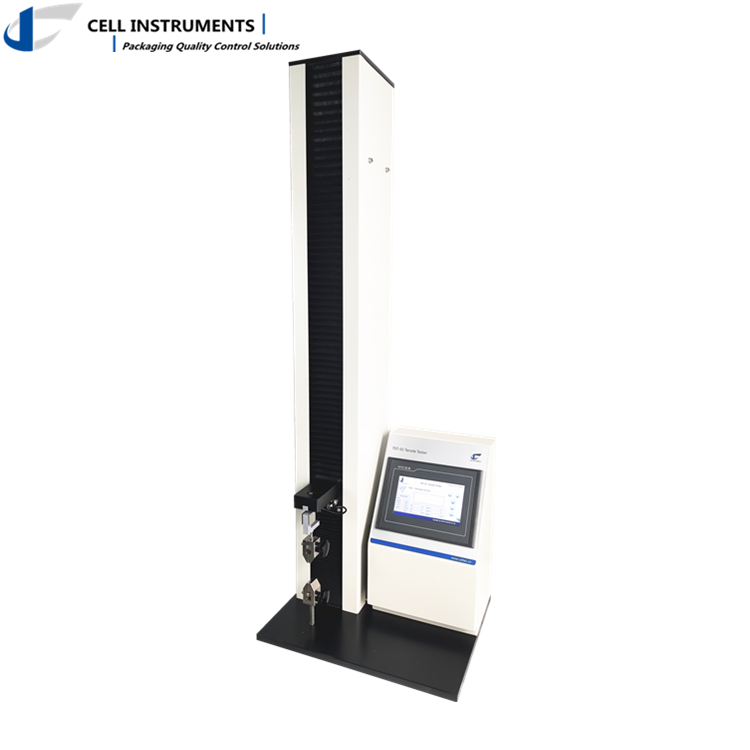

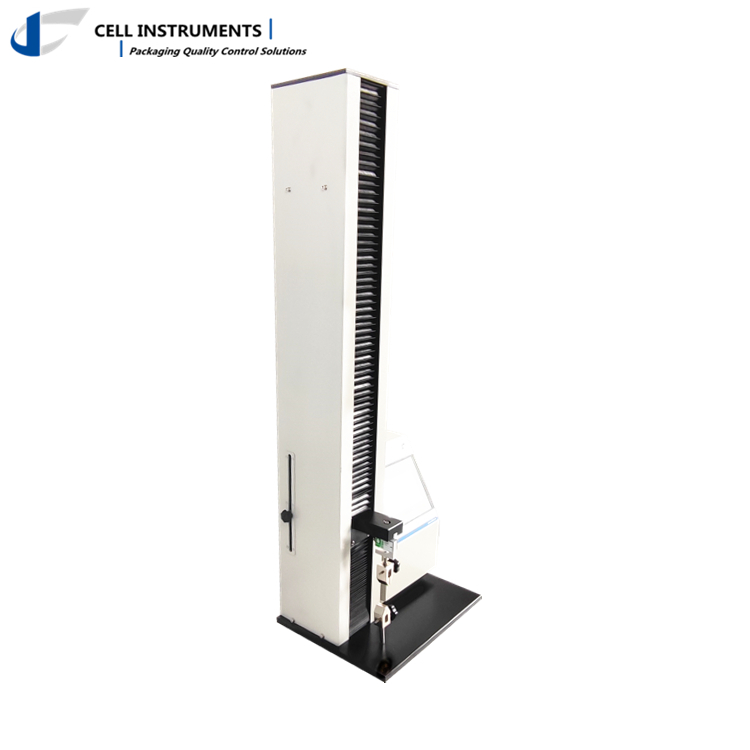

TST-01Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films (needs different clamps or fixtures), composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
Technical Features
- 7 inch TFT touch screen operation
- PLC control
- Precision ball lead screw
- Test speed adjustable
- Multiple fixtures available
- Limiting device and automatic returning function
- Multiple test items available
- Microprinter(optional)
Main Parameters
- Test Range: 0-500N (Standard, 50N,100N,200N are optional)
- Stroke: 800mm (other strokes available)
- Test Speed: 1~500mm/min
- Displacement Accuracy: 0.01mm
- Accuracy: 0.5% F.S.
- Sample Width: 27mm (other optional)
- Control: PLC and human machine interface
- Data Output: Screen, Microprinter (optional), RS232(optional)
