Application

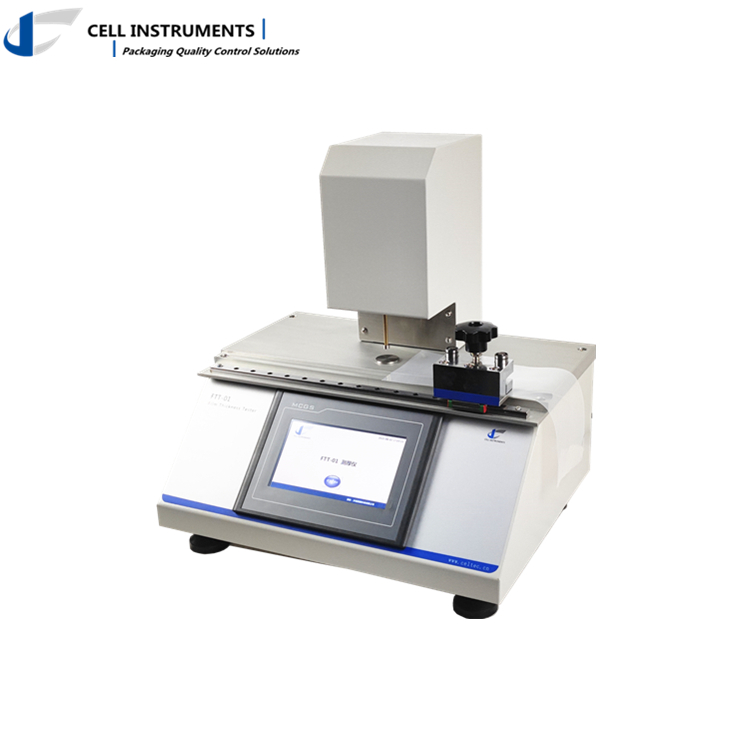

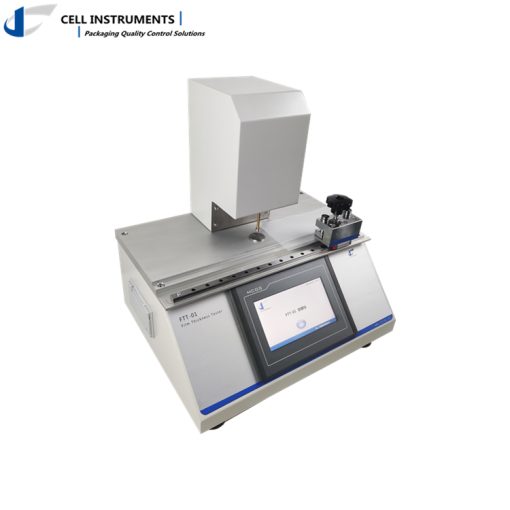

Thickness tester employs mechanical scanning method to measure the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.
Summary of test method
A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.
Standards
ISO4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 481
Technical Features
- PLC control and HMI touch screen operation
- Standard conformed hemispherical measure head is equipped
- Presser foot automatic lifting
- Real time display of maximum, minimum, average and standard deviation
- Test result storage and micro printing
- RS232 port and software (Optional)
Technical data
Test Range 0~2mm(Customization available)
Resolution 0.1 μm
Standard measure head hemispherical type
Optional measure head:
Measuring pressure: 17.5±1 KPa (for film); 50±1 KPa (for paper, optional)(flat foot)
Contact area 50 mm2 (for film); 200 mm2 (for paper, optional)(flat foot)
Power AC 110~220V
Dimensions 450mm(L)*350mm(W)*400mm(H)
Standards
ISO4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
