Application

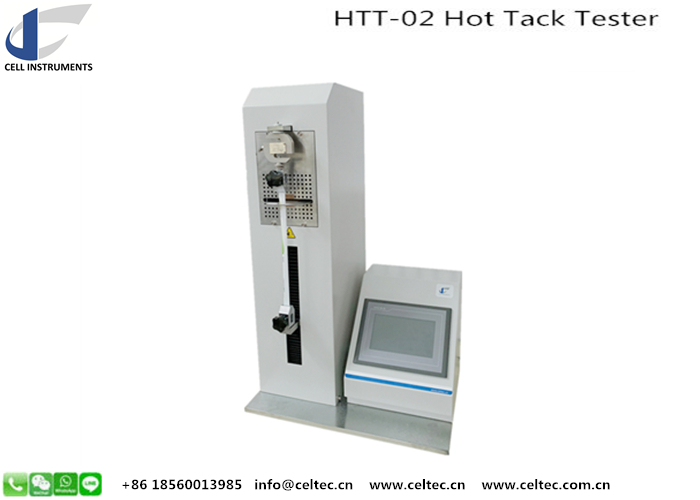

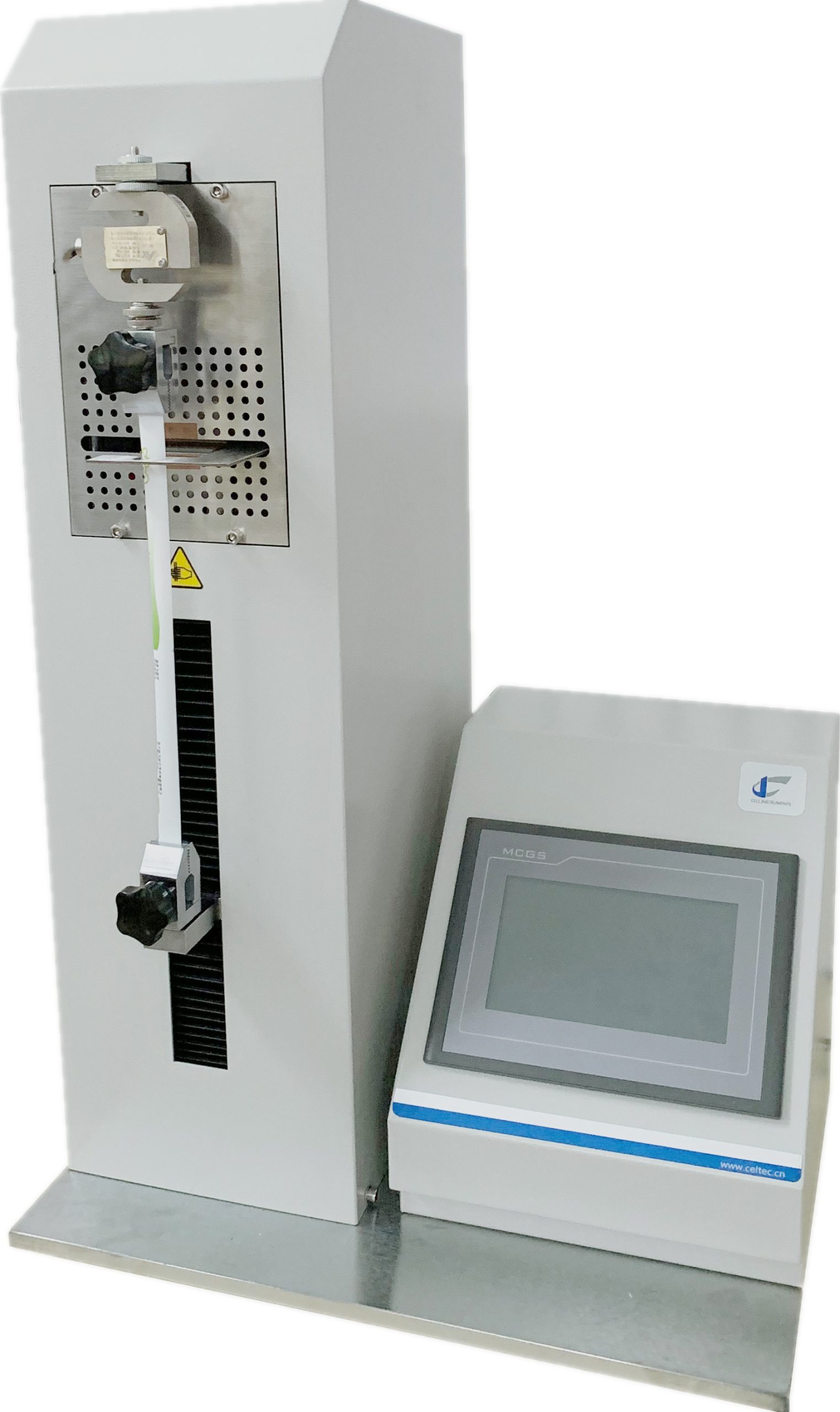

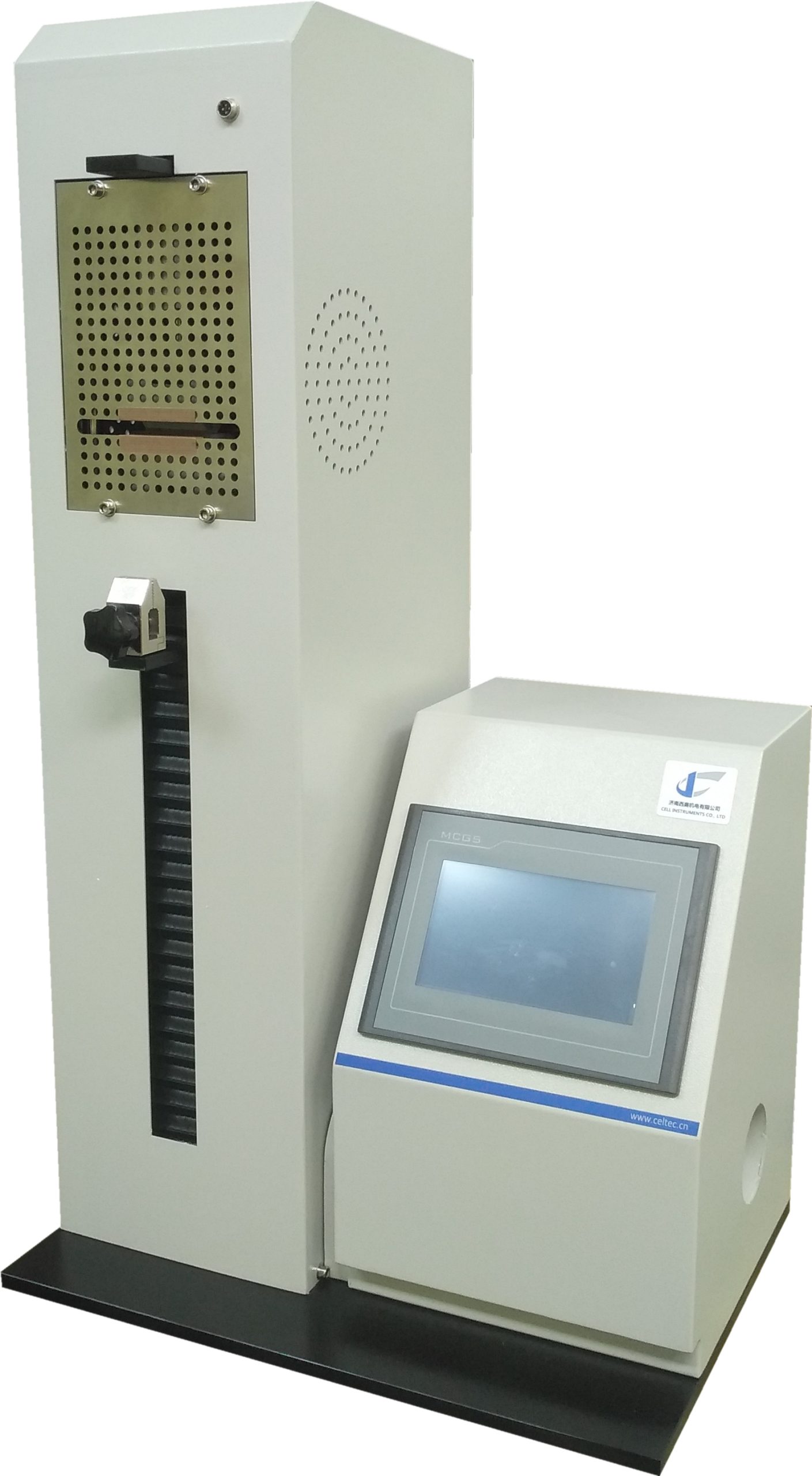

Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature.
Principle
A sample strip is sealed by applying pressure from two flat heated jaws under defined conditions of temperatures, contact time and pressure.
Technical Features
- Both Method A and Method B described in ASTM F1921
- P.I.D. temperature control
- 7 inch HMI touching screen operation
- PLC control inside
- Aluminum encapsulated sealing jaws
- Auto zeroing, overload and over travel protection
- Test speed 200cm/min, 1200cm/min or others
- RS 232 port & professional software (optional)
Main Data
Sealing Temperature Ambient~250℃
Temp Accuracy ±0.2℃
Heat Seal Dwell Time 0.1~9999s
Hot Tack Dwell Time 0.1~9999s
Sealing Pressure 0.15MPa~0.7MPa
Sealing Jaws 50mmx10mm Teflon Coated
Sealing Jaws Heating Double Heating
Load Cell 200N(Optional:30N50N100N500N)
Accuracy 0.5 F.S.
Resolution 0.01N
