Background
A film or sheet is formed by heating polymer to a molten state. The process is most often extruded or calendared. In the process, the molten film is pulled under tension, thus caused a stretching in machine direction. Then the film is cooled to form into a given thickness, width etc. Some undesirable stressed are locked in. When a plastic film or sheet is reheated, it can change in linear dimension. This is typically referred to as shrinkage. Shrinkage is also important because it can tell how the plastic was made. It can be used for quality control or process control.
Application

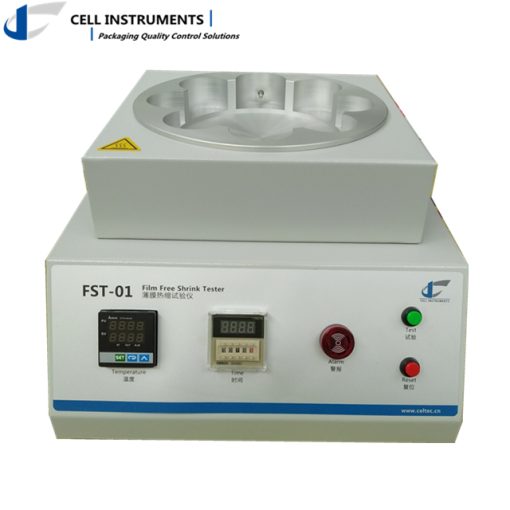

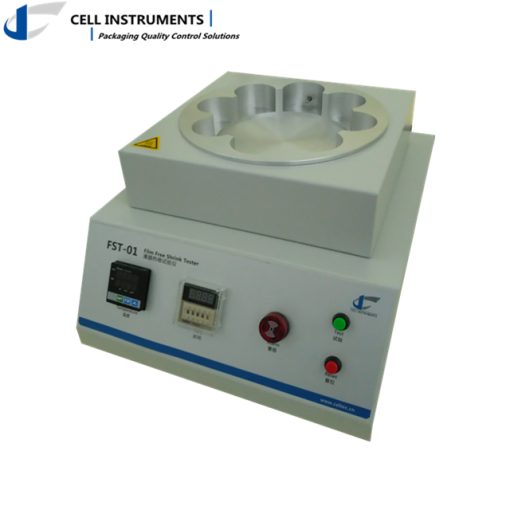

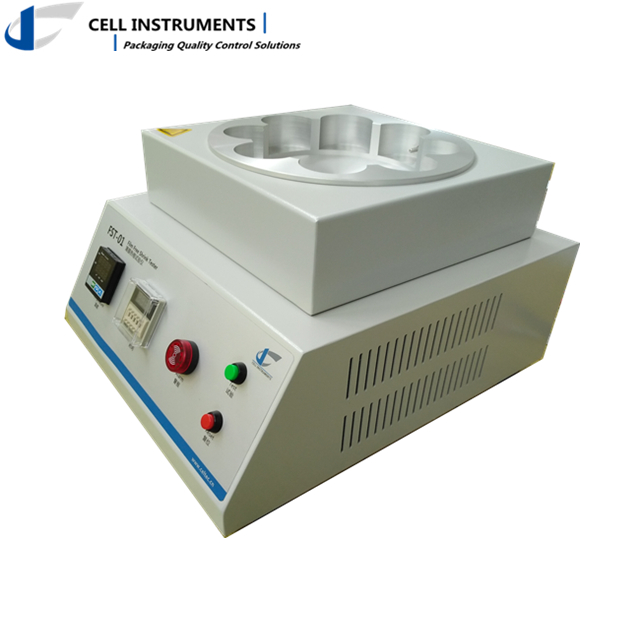

FST-01 Film Free Shrink Tester determines the degree of unrestrained linear thermal shrinkage at given temperatures of plastic film and sheeting in fluid medium.
Test Process
- A temperature probe is located to fluid heating area.
- Mount the test specimen on the free shrink holder and place in the liquid bath when desired temperature is reached.
- When time is up, the alarm beeps.
- Remove test specimen and press Stop button to finish the test.
- Treat the specimen at ambient environment and measure the shrinkage
Technical Features
- P.I.D. temperature control
- High precision timer
- Alarming function
- Stable heating of fluid medium
- Standard square metal clamp and free shrink holder
- Oil bath cover equipped
Key Data
Sample Size ≤160 mm x 160 mm
Temperature Range Ambient ~ 200°C
Accuracy ±0.3°C
Dimension 37*44*28 LWH cm
Power Supply 220V 50Hz
Standards
ASTM D2732
