Background
The impact strength is one important index of plastic film quality, which can affect cost and tendency to fail during transportation. Falling dart impact test is a traditional way to determine the energy that causes a film to fail under specified conditions of impact of a free-falling dart.
Application

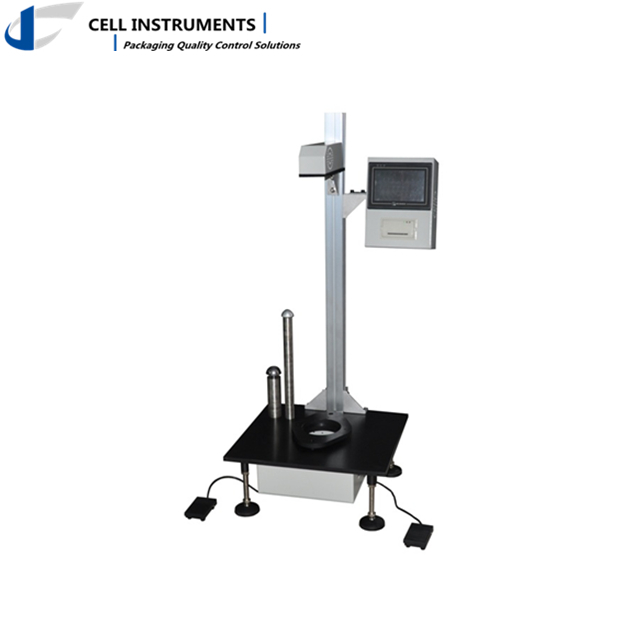

FDT-01 Falling Dart Impact Tester is used to measure he resistance performance of plastic films, sheets, and composite films, foils, paper, with less than 1mm thickness. This test indicates material ability to resist external force.
Standards: ASTM D1709, ISO 7765-1, JIS K7124-1, GB/T 9639.1
Technical Features
1. PLC control and touch screen operation
2. Two tests methods of A and B (B optional)
3. Test results of both gram and Joule display
4. Electromagnetic suspension and automatic falling

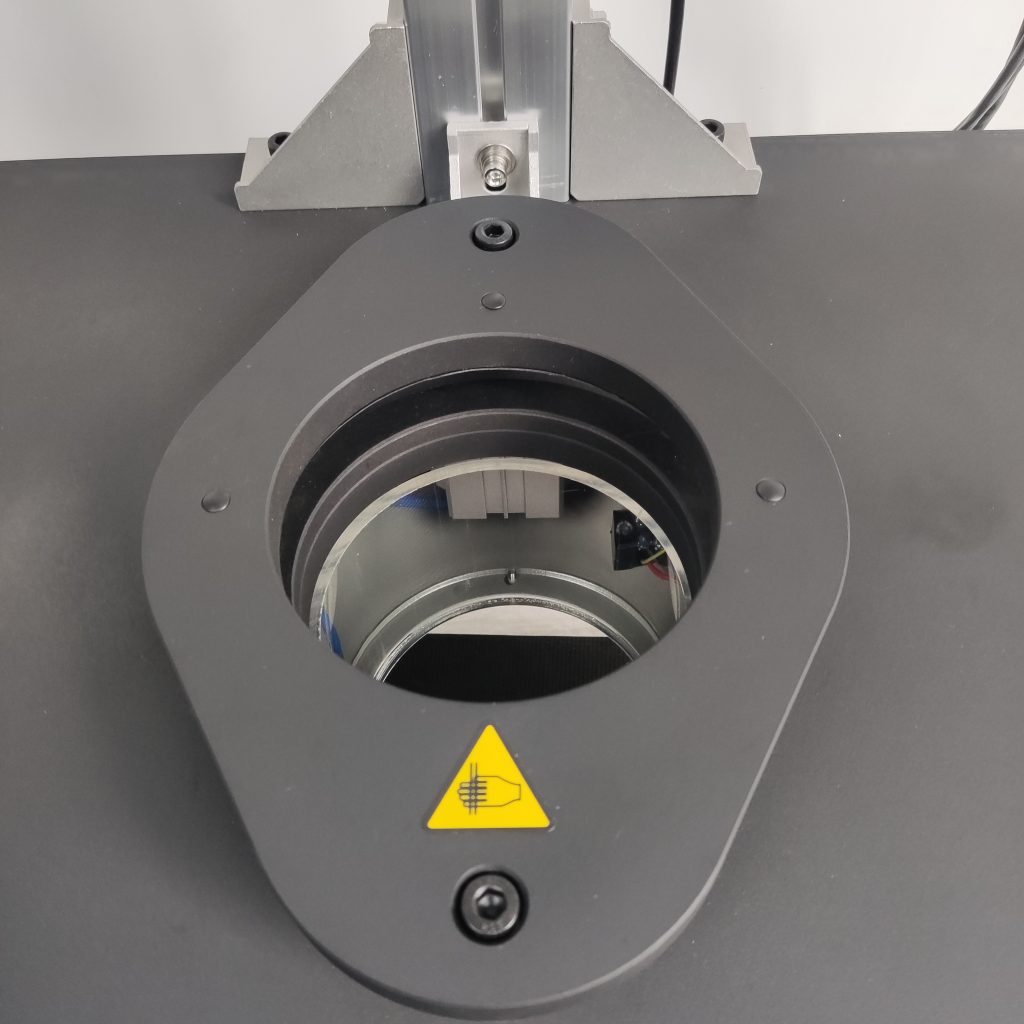

5. Sample pneumatic clamping
6. Observation light for checking sample status when clamping
7. Manual and foot switch equipped for safe and easy operation
8. Dot matrix type micro-printer for data export
9. Professional software (optional)
