Background
Impact resistance plays an important role in the performance of material subjected to regular shocking load or impact load. As this kind of load may cause rupture, cracking or deformation. There are various test procedures to evaluate the impact resistance of a material, such as dart impact, ball impact, pendulum impact, izod, charpy, tensile, etc.
Application
Falling ball impact tester measures the resistance performance of plates, sheets, and composites, films foils, paper etc. with less than 2mm thickness. By impact test, the material ability to resist external destruction can be indicated. User observes the destruction status of the test specimen after it has been hit by a falling weight that fell from a given testing height.
Technical Features

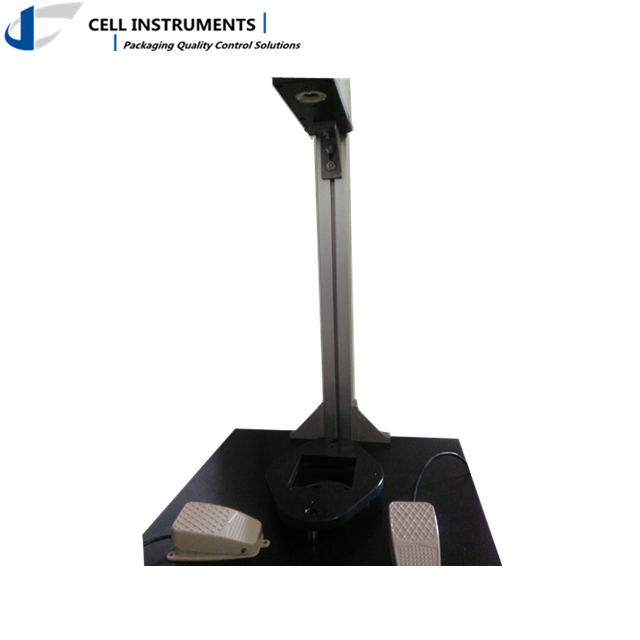

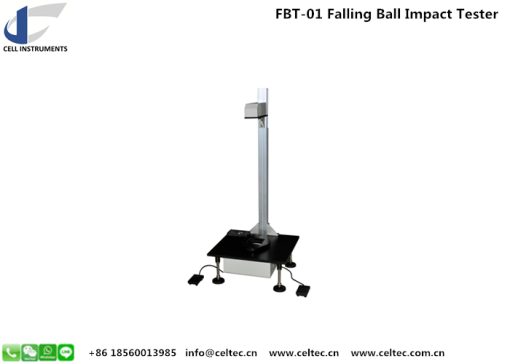

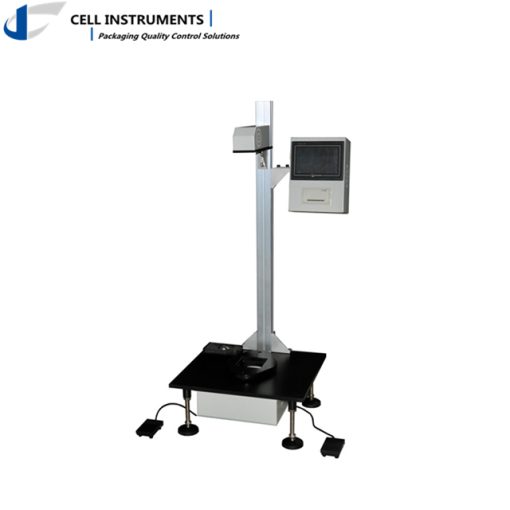

FBT-01 Falling Dart Impact Tester is a PLC controlled unit (industrial level stable) and HMI touch screen operated.
- PLC control and touch screen operation
- Impact height adjustable, different balls available
- Test results multi-units display
- Electromagnetic suspension and automatic release
- Sample pneumatic clamping
- Manual and foot switch
- Micro-printer for data export
- Professional software (optional)
Main Parameters
Impact Height 300mm-600mm (can be extended)
Ball Diameters(mm) 23, 25, 28.6, 38.1, 50.8(one equipped)
Accuracy 0.1g (0.1J)
Specimen Clamp Pneumatic Clamp
Gas Supply 0.6 MPa Φ8 mm PU Tubing
Specimen Size > 150 mm x 150 mm
Power Supply AC 110~220V 50Hz
Dimension(mm) Approx: 480*470 mm*1170 LWH
