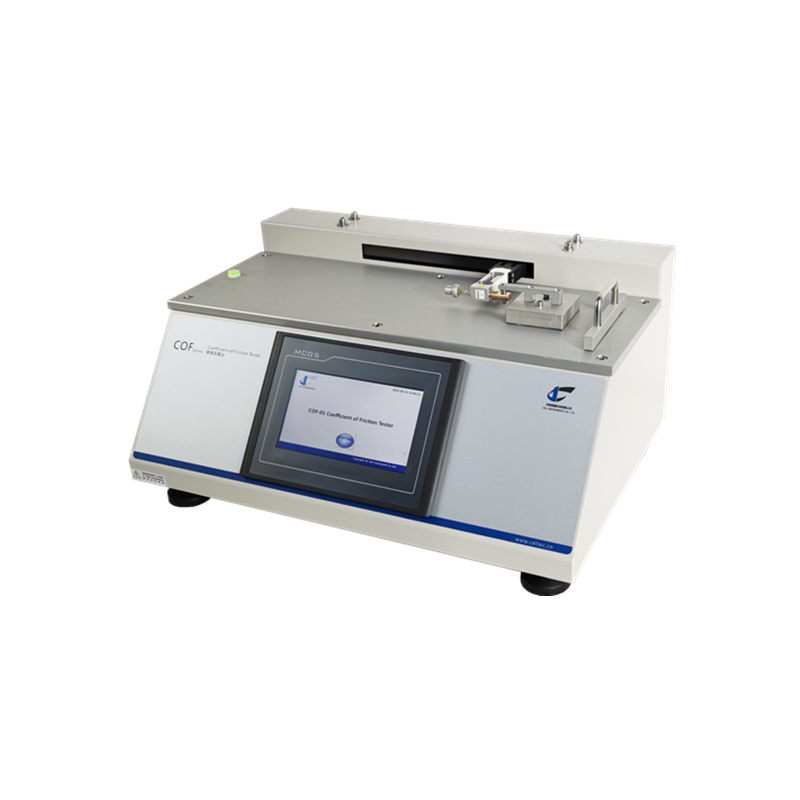

Coefficient of Friction Tester COF-01

Coefficient of Friction Tester COF-01

Coefficient of friction is the amount of friction existing between two surfaces. A low value of coefficient of friction means less force is required for sliding to occur. A higher value means more force is required.It has two kinds: Static and Kinetic.Static COF µs is a measure of the force required to begin movement. In…

Read more

Coefficient of Friction Tester COF-01 is for the measurement of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper, paper board, woven and non-woven, fabrics, metalplastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By modification, it could be used for many other types of materials and test standards.

Technical Data

Load Cell5N (or as required)
Accuracy0.5% F.S.
Sled200 gram(or as required)
Sled Size63.5mm*63.5mm (or as required)
Test Speed100mm/min (ISO), 150mm/min (ASTM)
Dimensions540mm(L)*380mm(W)*240mm(H)
Power110-~220V 50/60Hz

Key Features

  • It uses PLC control units and HMI touch screen
  • Stepper motor and precision ball lead screw driving mechanism.
  • Real time test curve display, max, min and average test result auto recording.
  • Both static and kinetic coefficient of friction and measured.
  • Comply with multiple test standards.
  • Dot matrix type microprinter embedded.
  • All aluminum test plane.
  • RS232 output and professional software (optional).
  • Support local language display.

Complying Standard

ASTM D1894, ISO 8295, TAPPI T816, GB 10006
